Attachment of counter-battens and wood based panels (e.g. suction-proof fastening of roof battens)
Constructing stairways
Attachment of the treads and risers to the string
Advantages
Considerably reduced screwing-in torque and reduced splitting effect
Length specification and manufacturer logo on the head
Higher head traction forces than countersunk head screws
Approved by building authorities
Under licensing number Z-9.1-235. Z-9.1-511 – approved by building authorities for fastening rooftop insulation systems

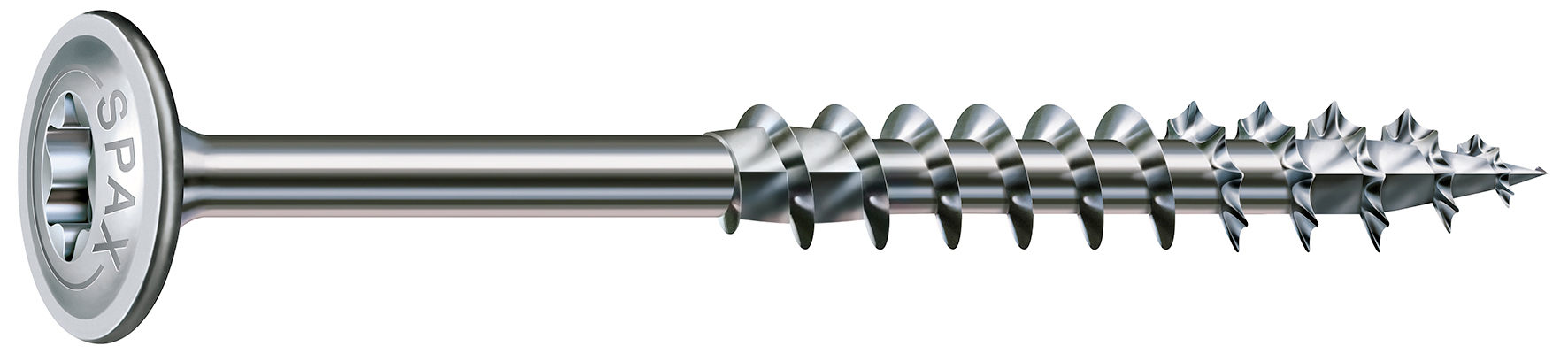

Special properties
A = Wide overlying washer head
B = WIROX P3J: The surface with extremely high protection against corrosion
C = SPAX 4CUT cutter (For screw lengths of 160 mm and larger): significantly reduces the screwing in torque
D = Partial thread; firm tightening of the upper wood layer
E = Spax T-Star plus; secure bit grip, no cam-out effect, optimal force transmission
Features
Spax 4Cut point; allows screwing in without pre-drilling (wood-dependent), reduces splitting as square end displaces the fibres
Spax ground serrations; up to the point – quick and secure fastening
Application
The non-threaded part must completely reach through the upper component. The washer head then pulls the upper component tighter to the lower component with each thread rotation.
Advantages of a washer head compared to a contersunk head:
Better tightening of connections. Easy bolting of steel parts and sheet metal to wood.
Washer Head allows higher beam supporting forces.
Further advantage: Also narrow and thin wood cross-sections can be bolted with 6 mm Ø thread.
At Southgate Timber one of our biggest strengths is our fast and efficient delivery service. Based in Moreton CM5 0JA, near Harlow in Essex close to the M25 we cover the whole UK mainland.
Our Website automatically calculates the cheapest option for any given basket this is based on size, weight, and post code. Options are based on below;-
Treatment (liquids) £9.50 + vat
Courier Data bag (shop items to 5kgs) £15.00 + vat
Courier timber items £37.50 + vat for first 15 kilos + 50p per kilo over 15 kilos, 25% premium for lengths 3.0m & longer
Lorry timber items from £40.00 + vat
Courier Surcharges may apply for long-distance locations
For precise delivery price please enter products in your basket then enter your postcode in the Delivery cost Calculator below.
Delivery Cost Calculator
Please enter your postcode below and click calculate
Some long distance locations on lorry’s are price on application please contact the sales team in this scenario sales@southgatetimber.co.uk or 01277890783
What we need from you on Courier deliveries
Please advise us of any day’s that you will not be able to accept delivery as soon as you order
Please advise us if you have access issues at your delivery location
Couriers are instructed to leave parcels somewhere safe should no one be at the property
We cannot offer set times for courier deliveries
What we need from you on Lorry deliveries
Please advise us of any day’s that you will not be able to accept delivery as soon as you order
Please advise us if you have access issues at your delivery location
The driver must have assistance to offload unless alternative arrangements made with our transport team
Deliveries are to kerbside only
Access must be suitable for lorries which will be 3.5 tonne 7.5 tonne or 14 tonne lorries (7.5 tonne being similar to average refuse collection lorry)
The drivers cannot enter customer properties or take materials to rear gardens.
Please check the delivery ticket is correct and sign to confirm this.
If you wish to collect please enter product into your basket and proceed to checkout.
During the checkout phase you will be able to select your day and time slot, your goods will be pre-picked and ready waiting on your arrival
Lead times are currently next day soonest and collections are Monday to Friday
Shop product like screws and treatment will be in the office please ensure you go to the office to get your paperwork and any accessories.
Note orders under £25.00 can still be ordered online but collection will be booked after the purchase is complete, one of our sales team will contact you to book this.

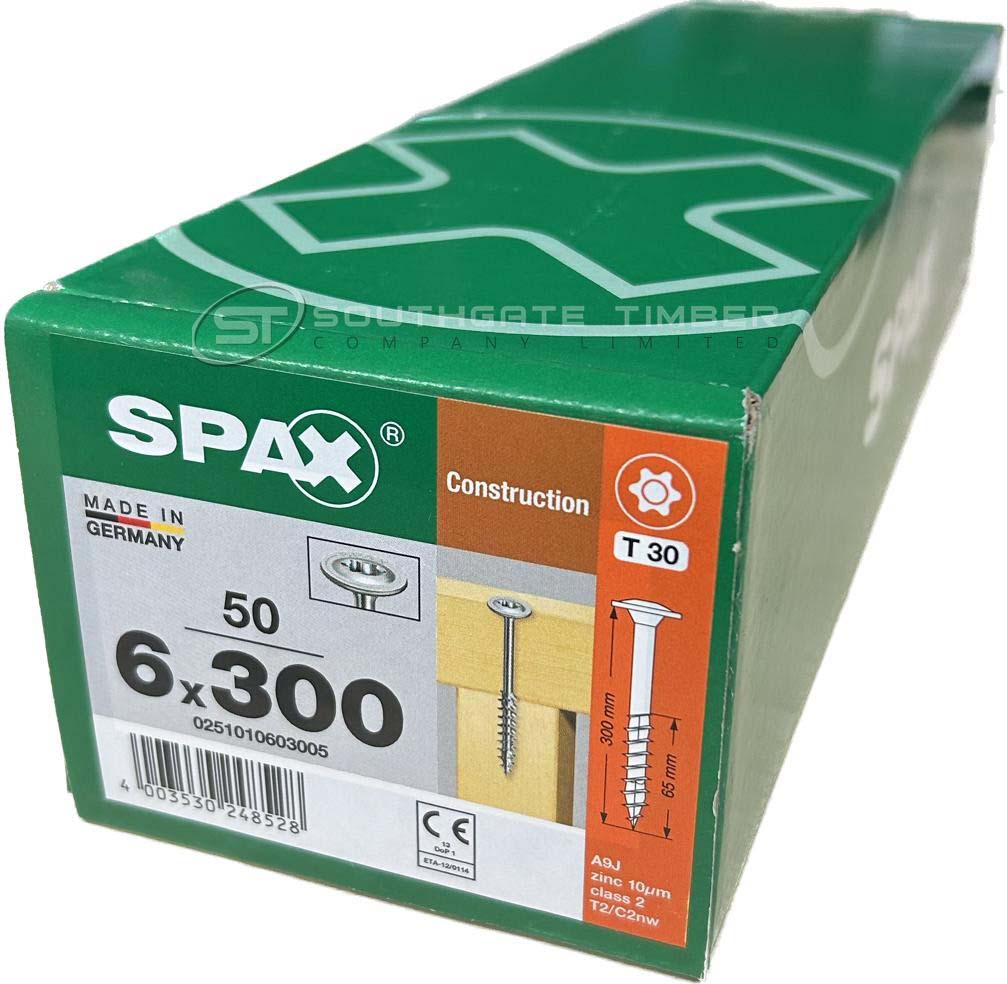

Spax WIROX 6.0 x 300mm x 50 construction screw
£59.95
each
(exc VAT)
